- Forklift 3 Ton Pic
- Cat Forklift 3 Ton Valve Clearance
- Toyota Forklift Diesel Engine
- Forklift 3 Ton Price Malaysia
- 3 Ton Forklift Dimension
ModelFD30,FD20,FD25
Capacity3000kg,2000kg, 2500kg
Load center500mm
- 2010 used TCM Forklift 3 ton Forklift 3 ton 3 TCM Used Forklift 3 ton. Manufacturer: TCM Model: 3 TON Well serviced and maintenance Guarantee: One year Excellent running condition, be ready to work Payment Terms: By T/T Bank Transfer, 30% deposit+ 70% balance Delivery time: within 7 working days after you.
- Toyota forklift 3 ton, 3 stage diesel, 4 wheel, my20. Toyota land cruiser 4.5l diesel gxr my19. Toyota toyota land cruiser 4.5l diesel gxr my19 4.5l. Toyota land cruiser vxr limited my19. Toyota toyota land cruiser vxr limited my19 4.5l.
Forklift, Forklift Truck, 3 Ton Diesel Forklift manufacturer / supplier in China, offering 3 Ton Diesel Forklift Truck, Heli Forklift Co., Ltd, 4 Ton Diesel Forklift Truck (FD40T-HGB3), Gantry Moving Type Container Crane and so on. – Diesel 3.0 Ton Forklift Truck. – Yanmar (Japan) Euro Iii, 4 Cylinder 4tne98 Engine. – Engine Rated Output 42.1 Kw/ 2300 Rpm. – Engine Rated Torque 186-206 N.M / 1700 Rpm. – Engine Displacement 3.318 Ltr, Engine Bore/ Stroke: 98 X 110 Mm. – 4500 Mm Triplex Mast (3 Stage Container Application Mast) With Side Shifter Attachment.
Lift height3000mm
Fork size(LxWxH)1070*125*45mm,1070*120*40mm, 1070*120*40mm
We're here to help:Easy ways to get the answers you need.
- 3 Ton Diesel Forklift
- By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.

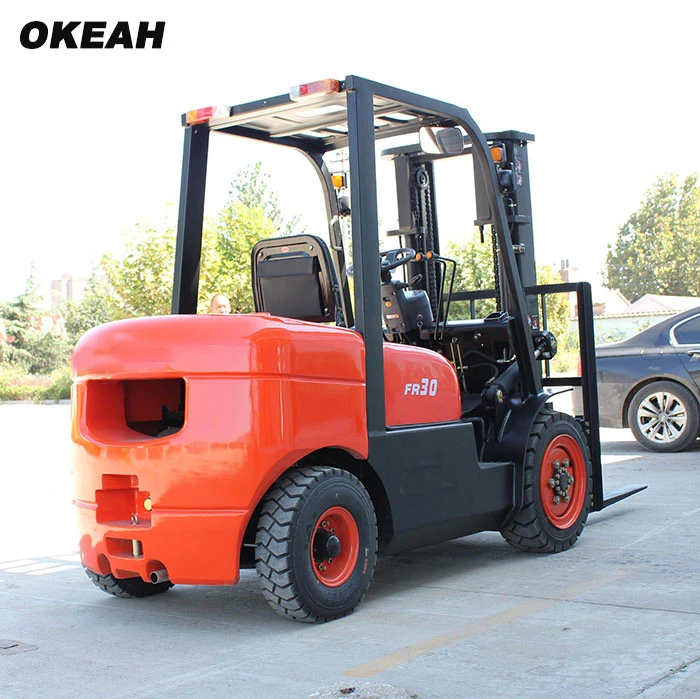

Forklift 3 Ton Pic
| Model | FD15 | FD20 | FD25 | FD30 | FD35 | |
| Brand(OEM acceptable) | FLIFT | FLIFT | FLIFT | FLIFT | FLIFT | |
| Power Source | Diesel | Diesel | Diesel | Diesel | Diesel | |
| Capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 |
| Load center | mm | 500 | 500 | 500 | 500 | 500 |
| Lift height（Duplex wide-view） | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Fork size(LxWxH) | mm | 920*120*35 | 1070*120*45 | 1070*120*40 | 1070*125*45 | 1070*125*50 |
| Mast tilt angle(F/R) | Deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Length to face of fork | mm | 2295 | 2600 | 2600 | 2730 | 2770 |
| Overall width | mm | 1086 | 1150 | 1150 | 1225 | 1225 |
| Mast lowered height | mm | 1995 | 1995 | 1995 | 2045 | 2045 |
| Mast extended height | mm | 3940 | 4030 | 4030 | 4150 | 4150 |
| Overhead guard height | mm | 2040 | 2070 | 2070 | 2090 | 2090 |
| Turning radius | mm | 2055 | 2310 | 2310 | 2440 | 2480 |
| Min. right angle aisle width | mm | 2150 | 2380 | 2380 | 2490 | 2530 |
| Front overhang | mm | 420 | 470 | 470 | 475 | 480 |
| Ground clearance | mm | 110 | 120 | 120 | 135 | 135 |
| Wheelbase | mm | 1400 | 1600 | 1600 | 1700 | 1700 |
| Travel (no load) | km/h | 15 | 19 | 19 | 19 | 19 |
| Lifting (full load) | mm/s | 450 | 530 | 530 | 440 | 420 |
| Gradeability(laden) | % | 20 | 20 | 20 | 20 | 20 |
| Service weight | kg | 2820 | 3590 | 3790 | 4300 | 4500 |
| Front tire | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-12PR | 28x9-15-12PR | |
| Rear tire | 5.00-8-10PR | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |
| Battery (voltage/capacity) | v/ah | (12V/80Ah) | (12V/80Ah) | (12V/80Ah) | (12V/80Ah) | (12V/80Ah) |
| Engine model | C490BPG-236 | C490BPG-236 | C490BPG-236 | NISSAN | A495BPG-13 | |
| Engine rated output/r.p.m | kw | 40/2650 | 40/2650 | 40/2650 | 31.2/2250 | 42/2650 |
| Engine rated torque/r.p.m. | n.m | 160/1800-2000 | 160/1800-2000 | 160/1800-2000 | 143.7/1600 | 174/1800-2000 |
| Engine No.of Cylinder | 4 | 4 | 4 | 4 | 4 | |
| Bore x stroke | mm | 95x105 | 95x105 | 95x105 | 89x83 | 95x105 |
| Displacement | cc | 2670 | 2670 | 2670 | 2065 | 2980 |
| Fuel tank capacity | L | 60 | 60 | 60 | 45 | 60 |
Cat Forklift 3 Ton Valve Clearance
FEATURES
Toyota Forklift Diesel Engine
Small ton internal combustion forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design
8.Adjustable steering wheel
9.By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
Forklift 3 Ton Price Malaysia
Please fill in your procurement needs and contact information
3 Ton Forklift Dimension
